Capacitors For Industrial & Commercial Applications


Technical Data:



Dielectric

:

Polypropylene

Capacitor Electrodes

:

Metallised film

Encapsulation

:

Round Aluminium can/ MS vertical Box

Temp.range

:

-40°C to +55°C

Test voltage between terminals

:

2.15x Rated Voltage (VAC)

Test voltage between body and terminals

:

3.0KVAC

Power loss

:

0.2 Watt/ KVAr

Capacitance tolerance

:

+/- 5%

Reference Standard

:

IS 13340-2012

Safety features

:

Self healing and Pressure Disconnector

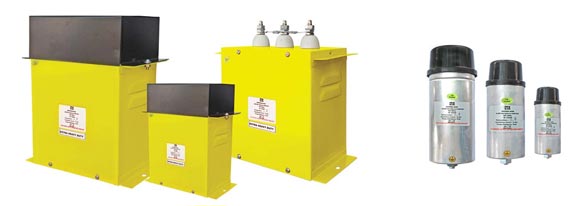

 Dimensions of Vertical box type capacitor

Rating KVAr

Voltage AC

Normal Duty

Heavy Duty

L x W x H

L x W x H

1.0



120x35x125

120x35x125

2.0



120x35x125

120x35x125

3.0



135x45x125

135x45x125

4.0

415

165x55x175

165x55x175

5.0

and

165x55x175

165x55x175

7.5

440, 480, 525 V

220x75x220

220x75x220

10.0



220x75x220

220x75x220

12.5



220x85x220

220x85x220

15.0



220x85x220

220x85x220

20.0



220x160x250

220x160x250

25.0



220x160x250

220x160x250

 Dimensions of Aluminium Can type capacitor


Rating KVAr

Voltage AC

Normal Duty

Heavy Duty

Mounting

Dia x Height

Dia x Height

1.0



50x155

50x155

M8 x 12

2.0



50x155

50x155

M8 x 12

3.0



63.5x155

63.5x155

M8 x 12

4.0

415

63.5x203

63.5x203

M8 x 12

5.0

and

63.5x203

63.5x203

M8 x 12

7.5

440, 480, 525 V

63.5x203

63.5x203

M8 x 12

10.0



85x203

85x203

M12 x 16

12.5



85x278

85x278

M12 x 16

15.0



85x278

85x278

M12 x 16

20.0



90x353

90x353

M12 x 16

25.0



90x353

NA

M12 x 16

Upon request special voltages and values can be offered.

All electrical loads which operates by means of magnetic field/Electro magnetic field effect such as Motors, Transformers, Fluorescent lighting, AC Drives …etc, basically consumes two type of Power, namely Active Power and Reactive Power. Active Power is used by the loads to meet it’s functional requirement, whereas the Reactive Power is used to meet it’s magnetic field requirement as also magnetic losses.

Reactive Power results in increased cost. It is necessary to reduce the Reactive Power to optimize system performance.  CAPACITORS are the most cost effective and reliable static device which can supply Reactive Power and maintain Power Factor close to unity.

LT Power capacitors for PF improvement are designed for use under dynamic loads and wide voltage variation conditions in single and three phase applications, ensuring reduction in Harmonic distortion. Available in Cylindrical and Vertical box configuration from 1KVAr to 25KVAr.

A. Application Guide

CTR Type

Configuration

Construction

Recommended for

MPPRC\S08

Al. Can

MPP-Dry

Normal Duty, Agri pump and Industrial application.

MPPRC\S09

Al. Can

MPP-Dry

Heavy Duty, Industrial application, Harmonic rich environment and wide voltage variation

MPPRVB\S01

Vertical MS box

MPP-Dry

Normal Duty, Agri pump and Industrial application.

MPPRVB\S02

Vertical MS box

MPP-Dry

Heavy Duty, Industrial application, Harmonic rich environment and wide voltage variation

MPPRVB\S03

Vertical MS box

MPP-Dry

Extra Heavy Duty, dynamic loads and wide voltage variation
